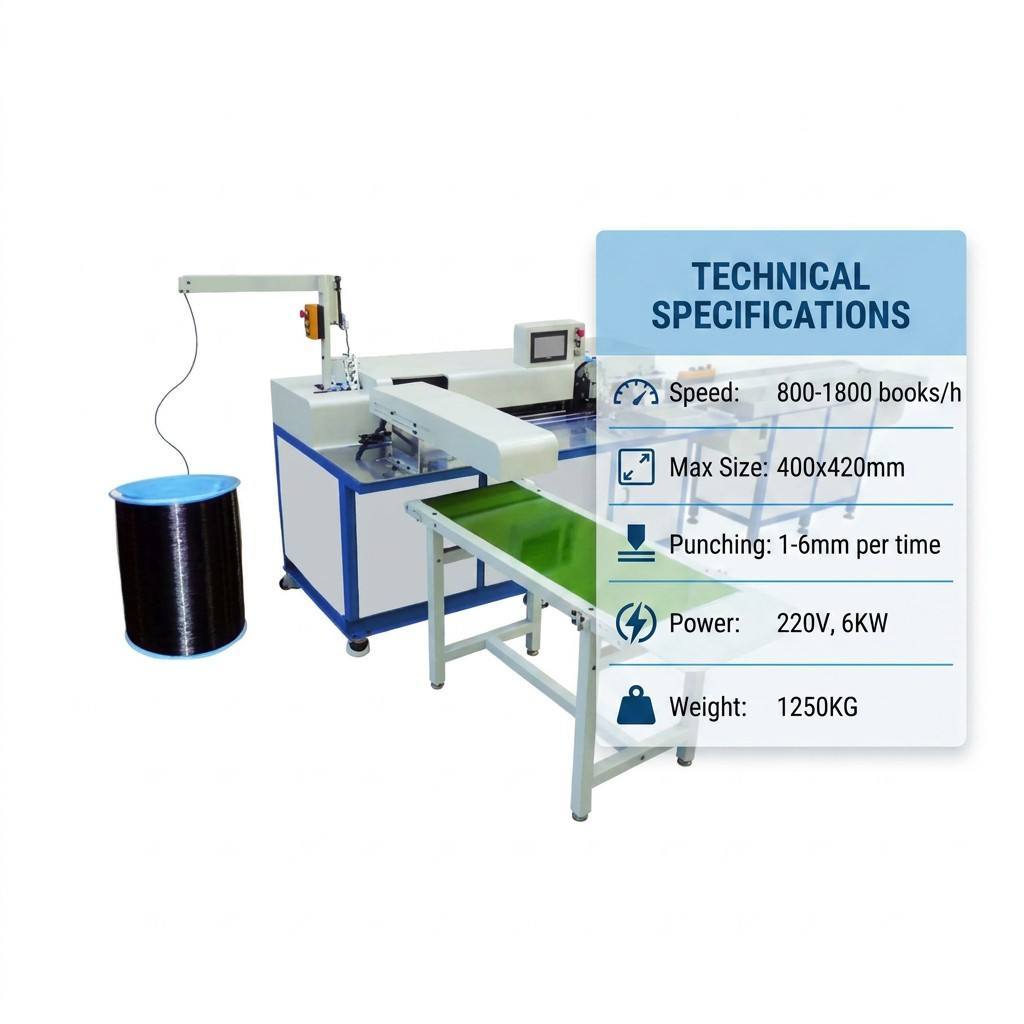

Automatic Spiral Forming Punching Binding Machine Suitable for Continuous Operation in Demanding Industrial Paper Processing Applications

Name: Automatic Spiral Forming Punching Binding Machine Suitable for Continuous Operation in Demanding Industrial Paper Processing Applications
Brand: HXCP
Price: 38000 USD

China Automatic Spiral Forming Punching Binding Machine Suitable for Continuous Operation in Demanding Industrial Paper Processing Applications factory

Price : USD 38000 per set

Packaging Details : Stretch Film with Wooden Case

Max Book Size for Feeding Belt : 400×400mm

Certification : CE

Size of Spiral Wire : 1/4"-5/8"

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Max Times of Punching One Book : 5 times

Delivery Time : 30 work days

Punching Thickness(one-time) : 1-6mm

Brand Name : HXCP

Supply Ability : 10 sets/month

Max Punching Thickness : 13mm(16mm for special product)

Min Punching and Binding size : 100mm(punched side)×140mm

Speed : 800-1800 books/hour

Max Punching and Binding size : 400mm(punched side)×420mm

Place of Origin : China

MOQ : 1

Contact Now

Automatic Spiral Forming Punching Binding Machine for Notebook Calendar Production

This Automatic Spiral Forming Punching and Binding Machine is professional post-press stationery binding equipment. It completes the entire production process in one continuous workflow: automatic spiral wire forming from raw wire material, separate punching for covers and inner pages, spiral wire cutting, wire inserting, binding, wire closing, finished product trimming, as well as automatic collection and delivery. The machine only requires 1 to 2 operators for running. Featuring convenient adjustment, fast running speed and stable mechanical performance, it is applicable to all kinds of spiral wire bound stationery products.

Automatic Spiral Forming Punching Binding Machine Suitable for Continuous Operation in Demanding Industrial Paper Processing Applications

Application Scenarios

Spiral binding production of various notebooks, exercise books, diaries and sketchbooks
Calendar, wall calendar, desk calendar spiral coil binding and finished shaping processing
Wire binding work for brochures, manuals, catalogues and promotional booklets
Stationery factories and printing houses for mass spiral coil binding batch production
Custom printed products requiring durable metal spiral coil binding

Core Advantages

Integrated Automation

Combines spiral wire forming, separated punching, inserting, binding, closing and finished collecting into one-stop automatic operation, eliminating multiple standalone devices and manual transfer between working procedures.

Separated Punching Structure

Features separated punching for covers and inner pages to guarantee neat punching holes for different paper thicknesses.

Labor Efficiency

The entire production line only requires 1-2 staff to operate, significantly reducing labor costs.

Flexible Operation

With flexible adjustment function, operators can quickly switch specifications of finished products to meet diverse production requirements.

High-Speed Performance

Stable high-speed operation effectively improves daily output for mass stationery orders and batch production.
