Four-Head Document Drilling Machine Processes 50mm Stacks With 3-10mm Drill Bits

  • 1
  • 2
  • 3

Delivery Time : 30 work days

Hole Distance Range : 40–280 mm

Model Number : HXPD280

Worktable Size : 600 × 330 mm

MOQ : 1 set

Packaging Details : Stretch Film with Wooden Case

Standard Air Pressure : 0.6 MPa

Supply Ability : 10 sets/month

Margin Adjustment Range : 6–40 mm

Voltage & Power : 220V, 50Hz / 1.1 kW

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Drilling Diameter : 3–10 mm

Spindle Speed : 2800 r/min

Machine Dimensions : 640 × 600 × 1240 mm

Certification : CE

Place of Origin : China

Net Weight : 180 kg

Max. Drilling Thickness : 50 mm

Brand Name : HXCP

Worktable Travel : 200 mm

Contact Now

Four-Head Document Drilling Machine Processes 50mm Stacks With 3-10mm Drill Bits

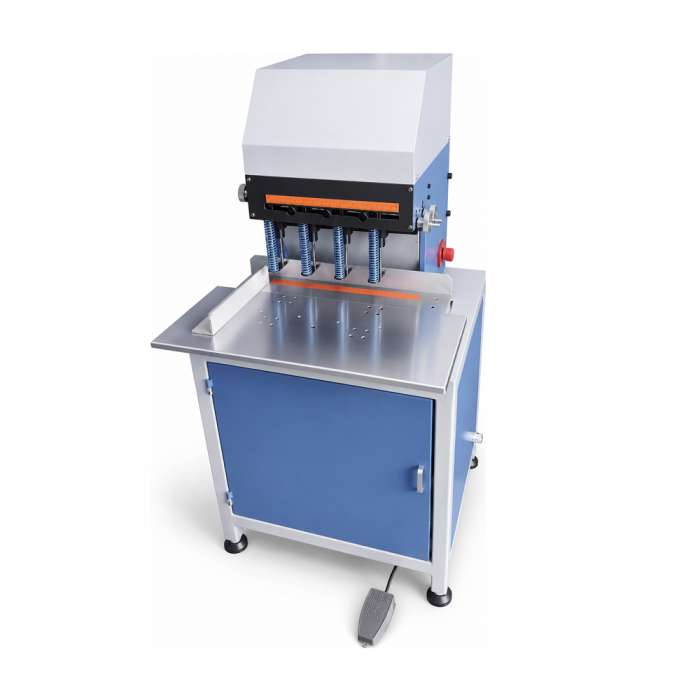

HXPD280 Four Head Paper Drilling Machine

Four-Head Document Drilling Machine Processes 50mm Stacks With 3-10mm Drill Bits

Description


The HXPD280 Four-Head Paper Drilling Machine performs synchronous multi-hole drilling on document stacks for print shops and binderies. Driven by a pneumatic cylinder on guide columns and linear sliders, the machine processes stock up to 50 mm thick using 3–10 mm drill bits. Setup configuration allows manual adjustment of the vertical stroke, individual head positions for hole distances (40–280 mm), back margins (6–40 mm), and lateral worktable positioning (200 mm travel) to accommodate varying paper formats.
Features:
  • Product Name: HXPD280 Four-Head Paper Drilling Machine
  • Function: Performs synchronous multi-hole drilling on document stacks
  • Applications: Print shops and binderies
  • Drive System: Pneumatic cylinder on guide columns and linear sliders
  • Drilling Capacity: Processes stock up to 50 mm thick
  • Drill Bits: 3–10 mm diameter bits
  • Head Positioning: Manual adjustment of individual head positions for hole distances (40–280 mm)
  • Stroke Adjustment: Manual adjustment of vertical stroke
  • Back Margin: Adjustable from 6–40 mm
  • Worktable: Lateral positioning with 200 mm travel to accommodate varying paper formats
  • Efficiency: Synchronous drilling for consistent and accurate hole patterns

Keywords: Paper Drilling Machine, Four-Head Driller, HXPD280, Document Drilling, Multi-Hole Drilling, Pneumatic Paper Driller, Adjustable Hole Spacing, Print Shop Equipment, Binderies

Application:
  1. Document Filing: Drilling multi-hole patterns for ring binders, lever arch files, and suspension files
  2. Notebook & Exercise Book Production: Creating holes for wire-O binding and spiral binding
  3. Catalog & Manual Finishing: Drilling documents for presentation folders and product manuals
  4. Stationery Manufacturing: Hole drilling for calendars, diaries, and custom stationery
  5. Print Shop Drilling: High-volume drilling for office documents and binding preparation
Support and Services:

The HXPD280 Four-Head Paper Drilling Machine performs synchronous multi-hole drilling on document stacks for print shops and binderies. Driven by a pneumatic cylinder on guide columns and linear sliders, the machine processes stock up to 50 mm thick using 3–10 mm drill bits. Setup configuration allows manual adjustment of the vertical stroke, individual head positions for hole distances (40–280 mm), back margins (6–40 mm), and lateral worktable positioning (200 mm travel) to accommodate varying paper formats. Our technical support and services team is available to assist with any questions or issues related to the operation, maintenance, and repair of the machine. We offer a range of services to ensure that your machine is operating at its best, including:

  • Installation and setup assistance
  • Ongoing technical support via phone or email
  • Regular maintenance and servicing
  • Repairs and replacement parts
  • Training and education for machine operators

Our team of experienced technicians is dedicated to providing prompt and reliable support, so you can focus on your business operations with confidence. Contact us today to learn more about our technical support and services for the HXPD280 Four-Head Paper Drilling Machine.

Products Show


Four-Head Document Drilling Machine Processes 50mm Stacks With 3-10mm Drill BitsFour-Head Document Drilling Machine Processes 50mm Stacks With 3-10mm Drill Bits

Details


Four-Head Document Drilling Machine Processes 50mm Stacks With 3-10mm Drill BitsFour-Head Document Drilling Machine Processes 50mm Stacks With 3-10mm Drill BitsFour-Head Document Drilling Machine Processes 50mm Stacks With 3-10mm Drill BitsFour-Head Document Drilling Machine Processes 50mm Stacks With 3-10mm Drill Bits

FAQ

Q1 : Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.

Q2: what's your guarantee or the warranty of the quality if we buy your machines?

A: We can offer high quality machines with 1 year guarantee and supply life-long technical supports.

Q3: when can i get my machine after l paid?
A: The delivery time is based on the exact machine you confrmed.

Q4: How can i install my machine when it arrives?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.

Q5: what's your delivery time?
A: Depending on the type of machines, duration of 15 days to 60 days from the date ofcontract.

Q6: Do you have after-sales support?
A: Yes, we are happy to give advice adn we also have skilled technicians avaliable across the world, we need your machines running in order to keep your business running.

Q7: How about the spare parts?
A: After we deal down all the things. we will offer you a spare parts list for your reference.

Q8: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifcations, using top components.

Q9: what will you do if the machien is broken:
A: Our machine'waranty period is 12 months, if the brokend parts can't repaird , we cansend the beyond the warranty period, we can send the new parts replace the broken partsfor free, but you need to pay the express cost. It is beyond the waranty period, we cannegotiate to solve the problems, and we supply the technical support for the whole life ofthe equipment.

Q10: Can you be responsible for transport?
A: Yes , please tell me the destination port or address, we have rich experience intransporting.
